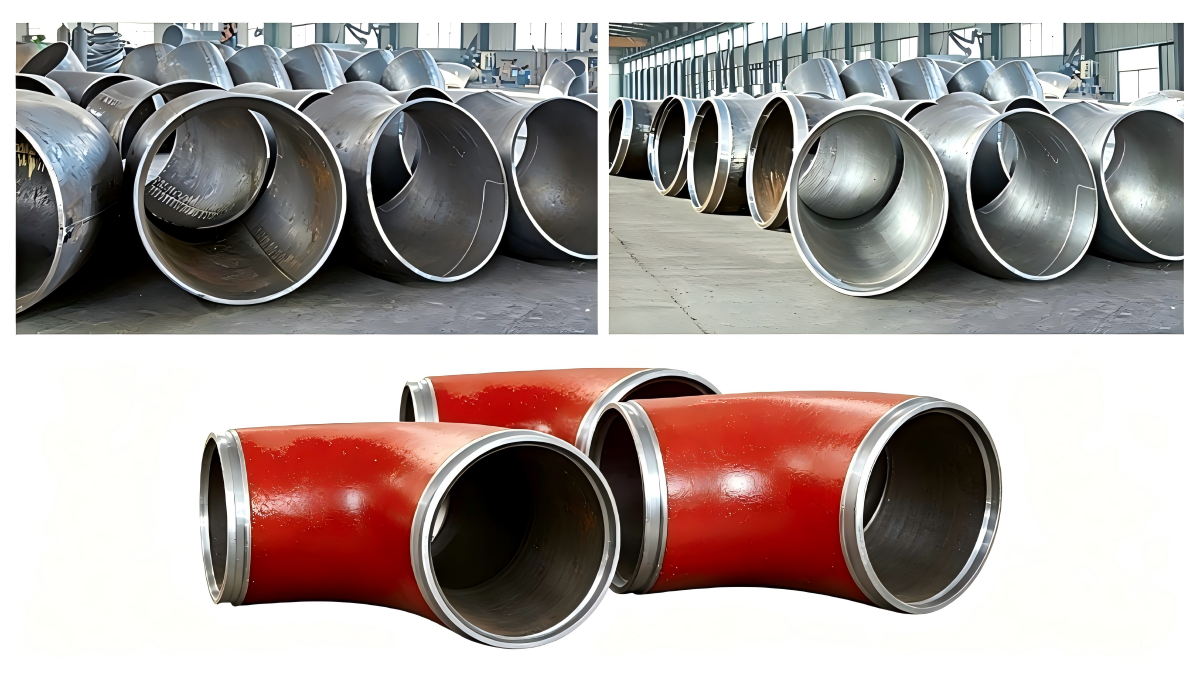

Elbow

Products Type:

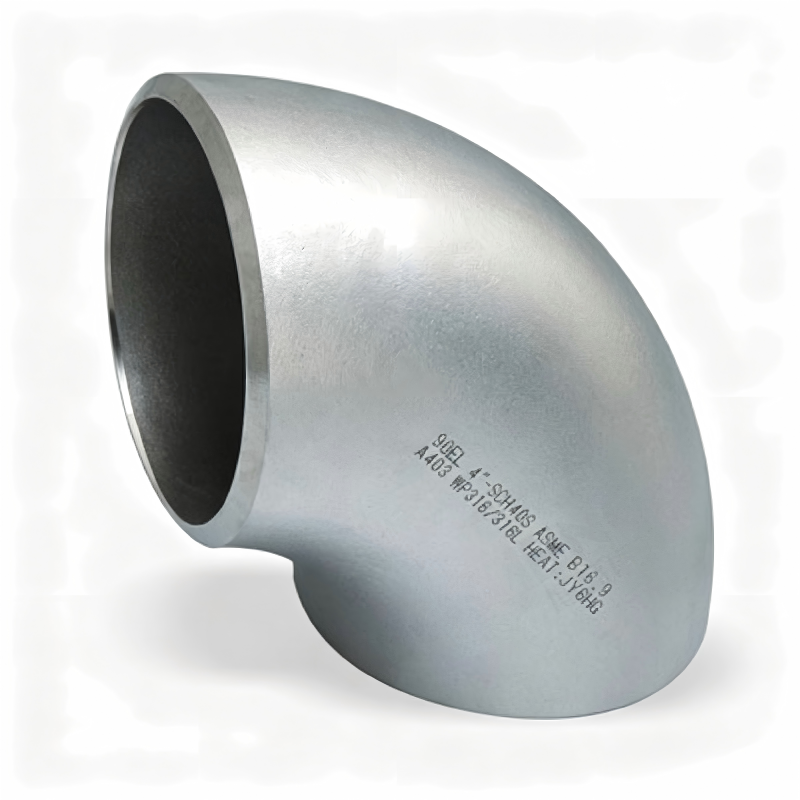

90° Long Radius Elbow (LR)
90° Short Radius Elbow (SR) 1.0D

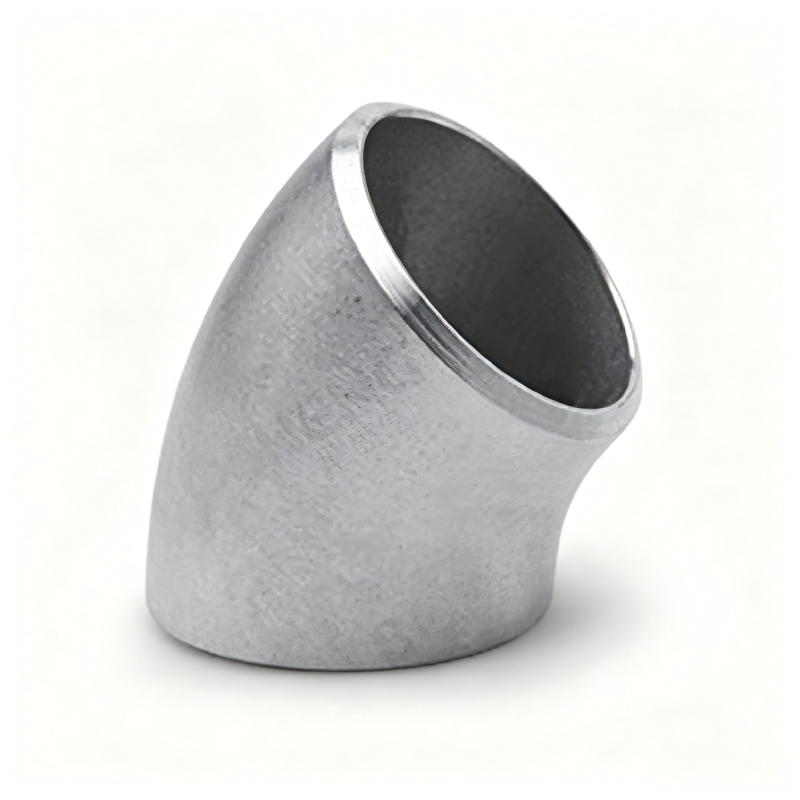

45° Long Radius Elbow (LR) 1.5D

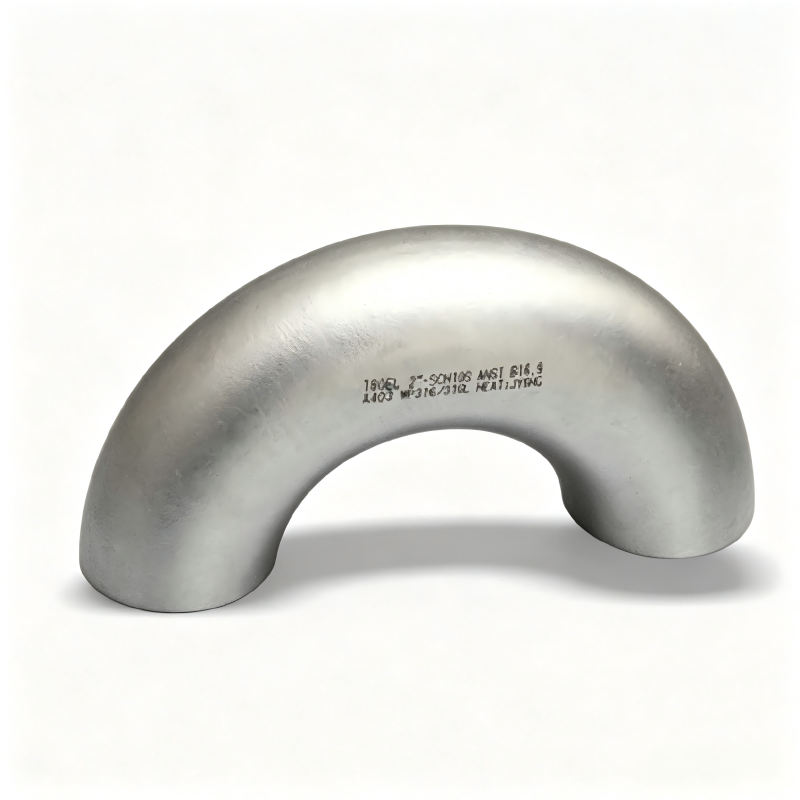

180° Long Radius Elbow (LR)

Size Range

Seamless: DN15 to DN600 (1/2" to 24")
Welded: DN15 to DN1200 (1/2" to 48")

Manufacturing Standards

Chinese Standards: GB/T12459, GB/T13401, HG/T21635, HG/T21631
US Standards: ASME/ANSI B16.9, MSS SP43
Japanese Standard: JIS B2311 / 2220
German Standards: DIN2605 / 2616 / 2615 / 2617
Russian Standards: GOST 17375 / 17376, etc.

Non-standard customizations are accepted upon drawing submission.

Pressure Ratings

SCH5S – SCH160, XXS

Available Materials

Products can be supplied in accordance with ASTM, JIS, DIN, GB, and other applicable standards, including but not limited to:

ASTM: 304, 304L, 316, 316L, 316Ti, 317, 317L, 321, 321H, etc.

JIS: SUS304, SUS304L, SUS316, SUS316L, SUS316Ti, SUS317L, SUS321, SUS321H, etc.

DIN: 1.4301, 1.4306, 1.4401, 1.4435, 1.4571, 1.4436, 1.4438, 1.4541, etc.

GB: 0Cr18N9, 00Cr19Ni10, 0Cr17Ni12Mo2, 00Cr17Ni14Mo2, 0Cr18Ni12Mo2Ti, 0Cr19Ni13Mo3, 0Cr19Ni13Mo3, 1Cr18Ni9Ti, 0Cr18Ni10Ti, etc.

In addition, we also offer products in carbon steel, alloy steel, duplex stainless steel, aluminum alloy, and other materials.
