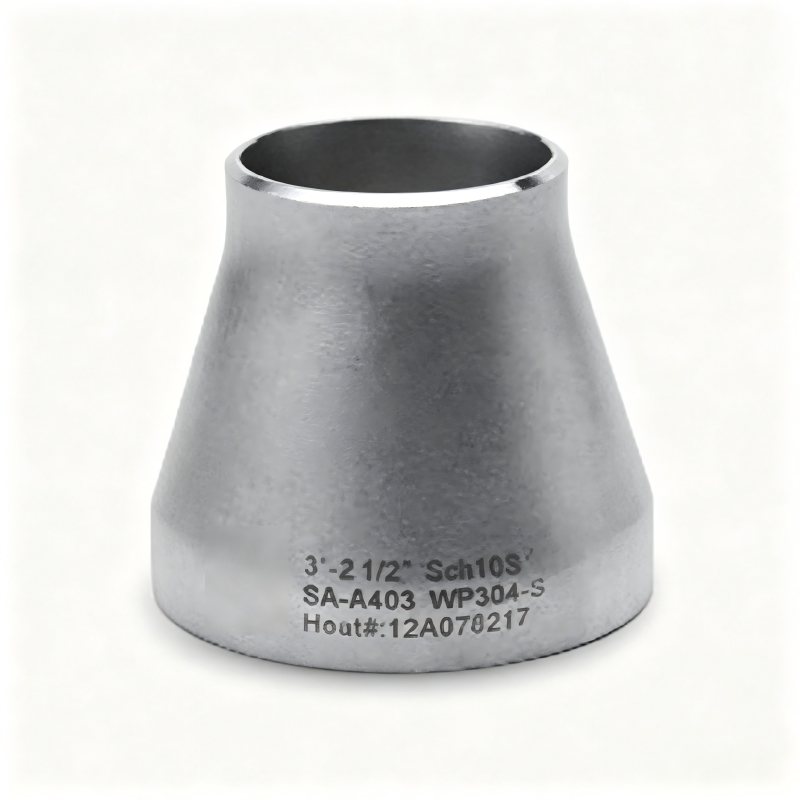

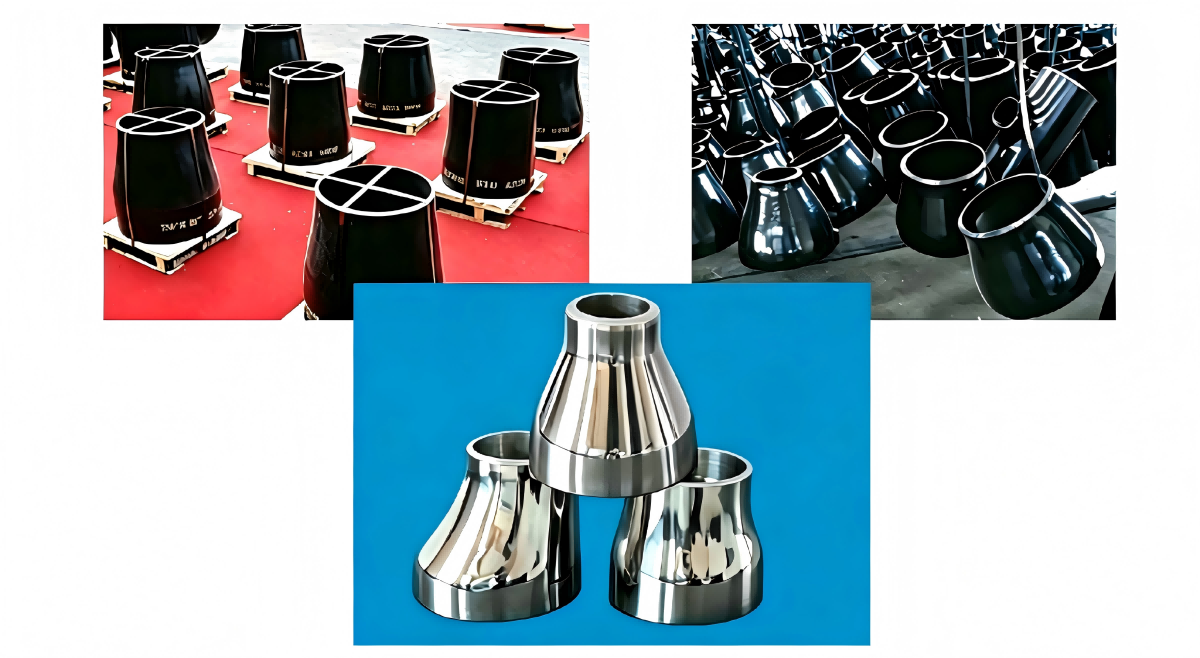

Reducer

Type: Concentric Reducer/ Eccentric Reducer

Manufacturing Standards：Produced in accordance with GB/T12459, GB/T13401, HG/T21635, HG/T21631, SY5010, SH3408, SH3409, ASME/ANSI B16.9, JIS B2311/2312/2313, DIN2605/2615/2616/2617, and other applicable standards.

Size Range：Seamless: DN15 to DN600 (1/2" to 24")
Welded: DN15 to DN1200 (1/2" to 48"), with a maximum producible range up to DN1800 (72")

Pressure Ratings：SCH5S to SCH160S(Non-standard products can be manufactured according to customer drawings upon request.)

Available Materials

Products can be supplied in accordance with ASTM, JIS, DIN, GB, and other applicable standards, including but not limited to:

ASTM: 304, 304L, 316, 316L, 316Ti, 317, 317L, 321, 321H, etc.

JIS: SUS304, SUS304L, SUS316, SUS316L, SUS316Ti, SUS317L, SUS321, SUS321H, etc.

DIN: 1.4301, 1.4306, 1.4401, 1.4435, 1.4571, 1.4436, 1.4438, 1.4541, etc.

GB: 0Cr18N9, 00Cr19Ni10, 0Cr17Ni12Mo2, 00Cr17Ni14Mo2, 0Cr18Ni12Mo2Ti, 0Cr19Ni13Mo3, 0Cr19Ni13Mo3, 1Cr18Ni9Ti, 0Cr18Ni10Ti, etc.

In addition, we also offer products in carbon steel, alloy steel, duplex stainless steel, aluminum alloy, and other materials.
